XC6401 - CMOS LDO voltage regulator

Product Overview

Torex Semiconductor

Part number	XC6401
Manufacturer	Torex Semiconductor
File Size	370.03 KB
Description	CMOS LDO voltage regulator
Datasheet	XC6401 Datasheet

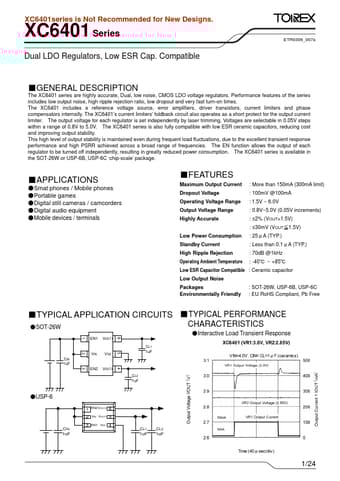

Additional preview pages of the XC6401 datasheet.

The XC6401 series are highly accurate, Dual, low noise, CMOS LDO voltage regulators.

m Output Current : More than 150mA (300mA limit) Dropout Voltage : 100mV @100mA Operating Voltage Range : 1.5V ~ 6.0V Output Voltage Range : 0.8V~5.0V (0.05V increments) Highly Accurate : ±2% (VOUT>1.5V) : ±30mV (VOUT≦1.5V) Low Power Consumption : 25μA (TYP. ) Standby Current : Less than 0.1μA (TYP. ) High Ripple Rejection : 70dB @1kHz Operating Ambient Temperature : -40℃ ~ +85℃ Low ESR Capacitor Compatible : Ceramic capacitor Low Output Noise Packages : SOT-26W, USP-6B, USP-6C.
