XC6403 High Speed LDO Regulator

XC6403 Description

XC6403/XC6404 Series High Current, High Speed LDO Regulators, Voltage Detector Function ETR1002_004 *GENERAL .
The XC6403/XC6404 series are highly precise, low noise, high current, positive voltage low dropout regulators with built-in voltage detector.

XC6403 Features

* of the series includes high ripple rejection and low dropout voltage, and the series features a voltage reference, an error amplifier, a current limiter and a phase compensation circuit plus a driver transistor. Detect voltage is selectable in 100mV increments within the range of 0.9V to 5.6V and th

XC6403 Applications

* Smart phones / Mobile phones
* Portable games
* Digital still cameras / Camcorders
* Digital audio equipments
* Reference voltage sources
* Multi-function power supplies

📥 Download Datasheet

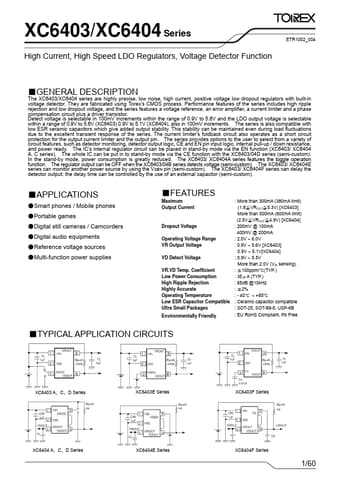

Preview of XC6403 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
XC6403
Manufacturer
Torex Semiconductor
File Size
1.08 MB
Datasheet
XC6403_TorexSemiconductor.pdf
Description
High Speed LDO Regulator
