XC6405 - High Speed LDO Regulator

Product Overview

Torex Semiconductor

Part number	XC6405
Manufacturer	Torex Semiconductor
File Size	1.30 MB
Description	High Speed LDO Regulator
Datasheet	XC6405 Datasheet

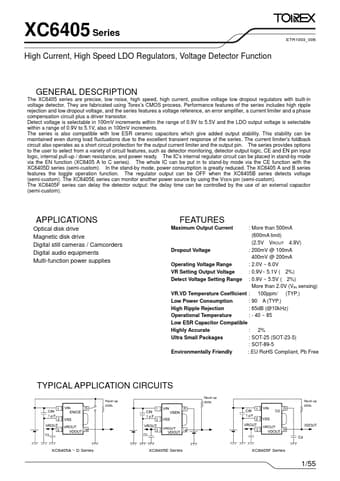

Additional preview pages of the XC6405 datasheet.

The XC6405 series are precise, low noise, high speed, high current, positive voltage low dropout regulators with built-in voltage detector.

of the series includes high ripple rejection and low dropout voltage, and the series features a voltage reference, an error amplifier, a current limiter and a phase compensation circuit plus a driver transistor. Detect voltage is selectable in 100mV increments within the range of 0.9V to 5.5V and the LDO output voltage is selectable within a range of 0.9V to 5.1V, also in 100mV increments. The series is also compatible with low ESR ceramic capacitors which give added output stability. This stabi.
