XC6404 - High Speed LDO Regulator

Product Overview

Torex Semiconductor

Part number	XC6404
Manufacturer	Torex Semiconductor
File Size	1.08 MB
Description	High Speed LDO Regulator
Datasheet	XC6404 Datasheet

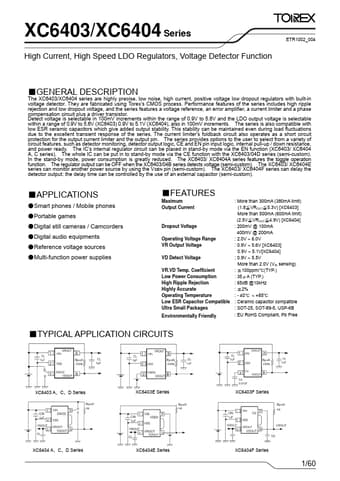

Additional preview pages of the XC6404 datasheet.

The XC6403/XC6404 series are highly precise, low noise, high current, positive voltage low dropout regulators with built-in voltage detector.

aximum Output Current Dropout Voltage Operating Voltage Range VR Output Voltage VD Detect Voltage VR. VD Temp. Coefficient Low Power Consumption High Ripple Rejection Highly Accurate Operating Temperature Low ESR Capacitor Compatible Ultra Small Packages Environmentally Friendly : More than 300mA (380mA limit) (1.8≦VROUT≦5.3V) [XC6403] More than 500mA (600mA limit) (2.5V≦VROUT≦4.9V) [XC6404] : 200mV @ 100mA 400mV @ 200mA : 2.0V ~ 6.0V : 0.9V ~ 5.6V [XC6403] 0.9V ~ 5.1V[XC6404] : 0.9V ~ 5.5V More.
