XCL101 - Inductor Built-in Step-up micro DC/DC Converter

Name: XCL101
SKU: XCL101-1412258

Torex

📥 Download Datasheet

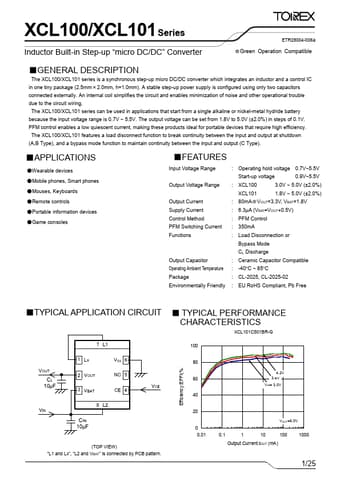

XCL101 Datasheet Preview — Preview of XCL101 PDF

Datasheet Details

Part number	XCL101
Manufacturer	Torex
File Size	1.85 MB
Description	Inductor Built-in Step-up micro DC/DC Converter
Datasheet	XCL101-Torex.pdf

XCL101 Product details

Description

The XCL100/XCL101 series is a synchronous step-up micro DC/DC converter which integrates an inductor and a control IC in one tiny package (2.5mm×2.0mm, h=1.0mm).

Features

Voltage Range Output Voltage Range Output Current Supply Current Control Method PFM Switching Current Functions Output Capacitor Operating Ambient Temperature Package Environmentally Friendly : Operating hold voltage 0.7V~5.5V Start-up voltage 0.9V~5.5V : XCL100 3.0V ~ 5.0V (±2.0%) XCL101 1.8V ~ 5.0V (±2.0%) : 80mA＠VOUT=3.3V, VBAT=1.8V : 6.3μA (VBAT=VOUT+0.5V) : PFM Control : 350mA : Load Disconnection or Bypass Mode CL Discharge : Ceramic Capacitor Compatible : -40ºC ~ 85ºC : C.
