XCL102 - Inductor Built-in Step-up micro DC/DC Converter

Name: XCL102
SKU: XCL102-1395201

Torex

📥 Download Datasheet

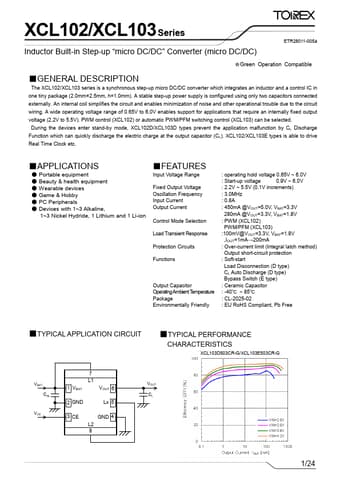

XCL102 Datasheet Preview — Preview of XCL102 PDF

Datasheet Details

Part number	XCL102
Manufacturer	Torex
File Size	742.22 KB
Description	Inductor Built-in Step-up micro DC/DC Converter
Datasheet	XCL102-Torex.pdf

XCL102 Product details

Description

The XCL102/XCL103 series is a synchronous step-up micro DC/DC converter which integrates an inductor and a control IC in one tiny package (2.0mm×2.5mm, h=1.0mm).

Features

Voltage Range Fixed Output Voltage Oscillation Frequency Input Current Output Current Control Mode Selection Load Transient Response Protection Circuits Functions Output Capacitor Operating Ambient Temperature Package Environmentally Friendly : operating hold voltage 0.65V ~ 6.0V : Start-up voltage 0.9V ~ 6.0V : 2.2V ~ 5.5V (0.1V increments) : 3.0MHz : 0.8A : 450mA @VOUT=5.0V, VBAT=3.3V 280mA @VOUT=3.3V, VBAT=1.8V : PWM (XCL102) PWM/PFM (XCL103) :100mV@VOUT=3.3V, VBAT=1.8V ,IOUT=1mA→2.
