XCL104 - Step-up DC/DC Converters

Torex

📥 Download Datasheet

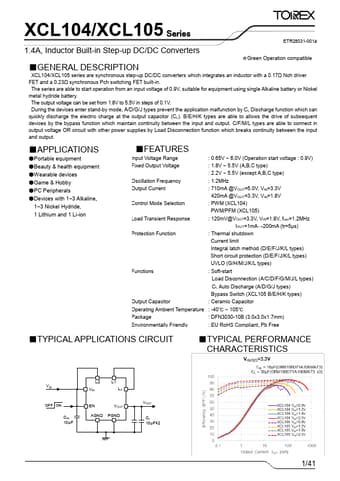

XCL104 Datasheet Preview — Preview of XCL104 PDF

Datasheet Details

Part number	XCL104
Manufacturer	Torex
File Size	2.83 MB
Description	Step-up DC/DC Converters
Datasheet	XCL104-Torex.pdf

XCL104 Product details

Description

XCL104/XCL105 series are synchronous step-up DC/DC converters which integrates an inductor with a 0.17Ω Nch driver FET and a 0.23Ω synchronous Pch switching FET built-in.The series are able to start operation from an input voltage of 0.9V, suitable for equipment using single Alkaline battery or Nickel metal hydride battery.The output voltage can be set from 1.8V to 5.5V in steps of 0.1V.During the devices enter stand-by mode, A/D/G/J types prevent the application malfunction by CL Disch

Features

r>.
Portable equipment Input Voltage Range : 0.65V ~ 6.0V (Operation start voltage : 0.9V).
Beauty & health equipment.
Wearable devices.
Game & Hobby.
PC Peripherals.
Devices with 1~3 Alkaline, 1~3 Nickel Hydride, 1 Lithium and 1 Li-ion Fixed Output Voltage Oscillation Frequency Output Current Control Mode Selection Load Transient Response : 1.8V ~ 5.5V (A,B,C type) : 2.2V ~ 5.5V (except A,B,C type) : 1.2MHz : 710mA @VOUT=5.0V, VIN=3.3V 420mA @VOUT=3.3V, VIN=1.8V : PWM (X.
