2SA1091 - TRANSISTOR

Toshiba Semiconductor

Datasheet Details

Part number	2SA1091
Manufacturer	Toshiba Semiconductor
File Size	272.39 KB
Description	TRANSISTOR
Datasheet	2SA1091 Datasheet
Additional preview pages of the 2SA1091 datasheet.

📁 Similar Datasheet

2SA1091 - Silicon PNP transistor (BLUE ROCKET ELECTRONICS)
2SA1091 - SILICON PNP TRANSISTOR (LZG)
2SA1090 - Silicon PNP transistor (Toshiba)
2SA1093 - Silicon PNP Transistor (Toshiba)
2SA1093 - SILICON POWER TRANSISTOR (SavantIC)
2SA1093 - POWER TRANSISTOR (Inchange Semiconductor)
2SA1094 - Silicon PNP Transistor (Toshiba)
2SA1094 - SILICON POWER TRANSISTOR (SavantIC)
2SA1094 - Power Transistor (Inchange Semiconductor)
2SA1095 - Silicon PNP Transistor (Toshiba)

Other Datasheets by Toshiba Semiconductor

2SA1012 - TRANSISITOR
2SA1013 - Silicon PNP Transistor
2SA1015 - Silicon NPN TRANSISTOR
2SA1015L - Silicon NPN TRANSISTOR
2SA1020 - PNP Transistor
2SA1048 - Silicon PNP Epitaxial Type Transistor
2SA1048L - TRANSISTOR
2SA1049 - Silicon PNP Epitaxial Type Transistor

Full PDF Text Transcription

Click to expand full text

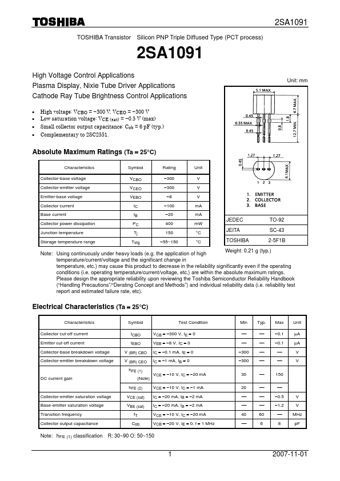

TOSHIBA Transistor Silicon PNP Triple Diffused Type (PCT process) 2SA1091 2SA1091 High Voltage Control Applications Plasma Display, Nixie Tube Driver Applications Cathode Ray Tube Brightness Control Applications • High voltage: VCBO = −300 V, VCEO = −300 V • Low saturation voltage: VCE (sat) = −0.5 V (max) • Small collector output capacitance: Cob = 6 pF (typ.) • Complementary to 2SC2551.

Published: Mar 22, 2005 |
