2SA1425 - Silicon PNP Epitaxial Type Transistor

Toshiba Semiconductor

Datasheet Details

Part number	2SA1425
Manufacturer	Toshiba Semiconductor
File Size	131.08 KB
Description	Silicon PNP Epitaxial Type Transistor
Datasheet	2SA1425 Datasheet
Additional preview pages of the 2SA1425 datasheet.

📁 Similar Datasheet

2SA1421 - PNP / NPN Epitaxial Planar Silicon Transistors (Sanyo Semicon Device)
2SA1423 - PNP/NPN Silicon Transistor (Sanyo)
2SA1426 - PNP Transistor (Toshiba)
2SA1400 - PNP Transistor (NEC)
2SA1400-Z - PNP Transistor (NEC)
2SA1400-Z - Transistor (Kexin)
2SA1400Z - PNP Transistor (INCHANGE)
2SA1402 - PNP/NPN Epitaxial Planar Silicon Transistors (Sanyo Semicon Device)
2SA1403 - PNP/NPN Epitaxial Planar Silicon Transistors (Sanyo Semicon Device)
2SA1404 - PNP/NPN Epitaxial Planar Silicon Transistors (Sanyo Semicon Device)

Other Datasheets by Toshiba Semiconductor

2SA1428 - Silicon PNP Epitaxial Type Transistor
2SA1429 - Silicon PNP Epitaxial Type Transistor
2SA1408 - Silicon PNP Epitaxial Type Transistor
2SA1430 - Silicon PNP Epitaxial Type Transistor
2SA1431 - Silicon PNP Epitaxial Type Transistor
2SA1432 - Silicon PNP Epitaxial Type Transistor
2SA1451A - TRANSISTOR
2SA1452A - TRANSISTOR

Full PDF Text Transcription

Click to expand full text

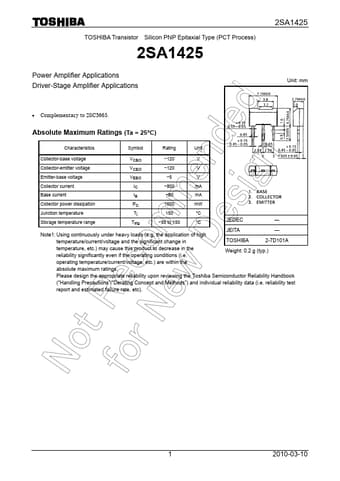

TOSHIBA Transistor Silicon PNP Epitaxial Type (PCT Process) 2SA1425 Power Amplifier Applications Driver-Stage Amplifier Applications 2SA1425 Unit: mm • Complementary to 2SC3665. Absolute Maximum Ratings (Ta = 25°C) Characteristics Symbol Rating Unit Collector-base voltage VCBO −120 V Collector-emitter voltage VCEO −120 V Emitter-base voltage VEBO −5 V Collector current IC −800 mA Base current IB −80 mA Collector power dissipation PC 1000 mW Junction temperature Storage temperature range Tj 150 °C Tstg −55 to 150 °C JEDEC ― Note1: Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the significant change in JEITA TOSHIBA ― 2-7D101A temperature, etc.
