2SA1431 Datasheet - Toshiba Semiconductor

2SA1431 Silicon PNP Epitaxial Type Transistor

TOSHIBA Transistor Silicon PNP Epitaxial Type (PCT Process) 2SA1431 Strobe Flash Applications Medium Power Amplifier Applications 2SA1431 Unit: mm High DC current gain and excellent hFE linearity : hFE(1) = 100 to 320 (VCE = 2 V, IC = 0.5 A) : hFE(2) = 70 (min) (VCE = 2 V, IC = 4 A) Low saturation voltage: VCE (sat) = 1.0 V (max) (IC = 4 A, IB = 0.1 A) Maximum Ratings (Ta = 25°C) Characteristics Symbol Ratin.

2SA1431_ToshibaSemiconductor.pdf

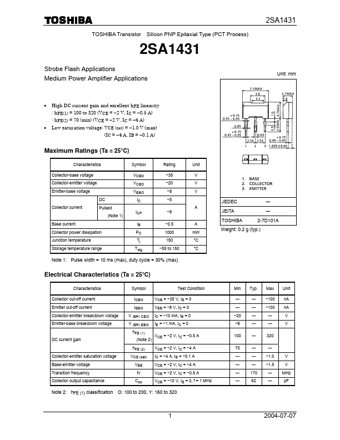

Preview of 2SA1431 PDF
2SA1431 Datasheet Preview Page 2 2SA1431 Datasheet Preview Page 3

Datasheet Details

Part number:

2SA1431

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

123.29 KB

Description:

Silicon pnp epitaxial type transistor.
