2SA1436 - PNP Epitaxial Planar Silicon Transistor

2SA1436 Description

Ordering number:EN2456 PNP Epitaxial Planar Silicon Transistor 2SA1436 High hFE, AF Amplifier Applications Applications * AF amplifier, various .

2SA1436 Features

* Adoption of MBIT process.
* High DC current gain (hFE=500 to 1200).
* Large current capacity.
* Low collector-to-emitter saturation voltage (VCE(sat)=0.5V max).
* High VEBO (VEBO≥15V). Package Dimensions unit:mm 2003A [2SA1436] Specifications Absolute Maximum Ratings at Ta =

2SA1436 Applications

* Applications

📥 Download Datasheet

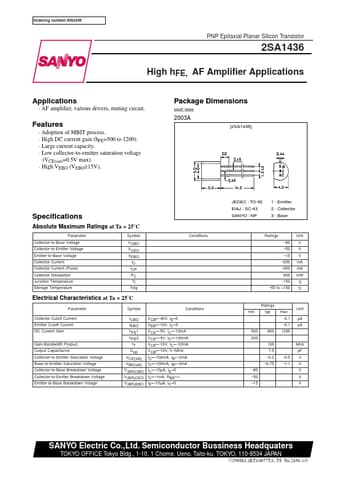

Preview of 2SA1436 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SA1436
Manufacturer
Sanyo Semicon Device
File Size
74.44 KB
Datasheet
2SA1436_SanyoSemiconDevice.pdf
Description
PNP Epitaxial Planar Silicon Transistor
