2SA1434 - PNP Epitaxial Planar Silicon Transistor

2SA1434 Description

Ordering number:ENN1853A PNP Epitaxial Planar Silicon Transistor 2SA1434 High hFE, Low-Frequency General-Purpose Amp Applications Applications *.

2SA1434 Features

* Ultrasmall-sized package permitting 2SA1434-used sets to be made smaller, slimer.
* Adoption of FBET process.
* High DC current gain (hFE=500 to 1200).
* Low collector-to-emitter saturation voltage (VCE(sat)≤0.5V).
* High VEBO (VEBO≥15V). Package Dimensions unit:mm 2018B [2SA1

2SA1434 Applications

* Applications

📥 Download Datasheet

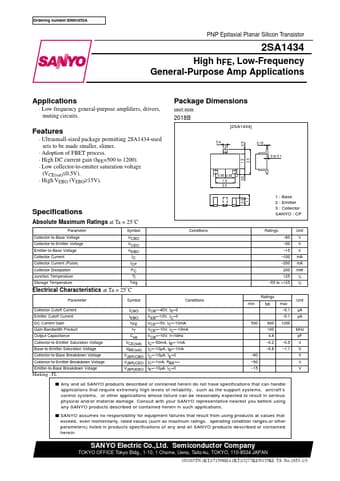

Preview of 2SA1434 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SA1434
Manufacturer
Sanyo Semicon Device
File Size
30.10 KB
Datasheet
2SA1434_SanyoSemiconDevice.pdf
Description
PNP Epitaxial Planar Silicon Transistor
