2SA1429 - Silicon PNP Epitaxial Type Transistor

📥 Download Datasheet

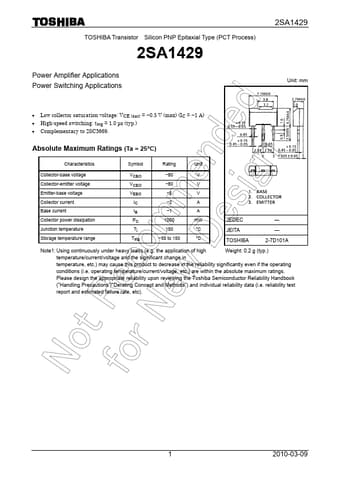

Datasheet preview – 2SA1429

Datasheet Details

Part number 2SA1429
Manufacturer Toshiba Semiconductor
File Size 172.84 KB
Description Silicon PNP Epitaxial Type Transistor
Datasheet download datasheet 2SA1429 Datasheet
Additional preview pages of the 2SA1429 datasheet.

📁 Similar Datasheet

  • 2SA1421 - PNP / NPN Epitaxial Planar Silicon Transistors (Sanyo Semicon Device)
  • 2SA1423 - PNP/NPN Silicon Transistor (Sanyo)
  • 2SA1426 - PNP Transistor (Toshiba)
  • 2SA1400 - PNP Transistor (NEC)
  • 2SA1400-Z - PNP Transistor (NEC)
  • 2SA1400-Z - Transistor (Kexin)
  • 2SA1400Z - PNP Transistor (INCHANGE)
  • 2SA1402 - PNP/NPN Epitaxial Planar Silicon Transistors (Sanyo Semicon Device)
  • 2SA1403 - PNP/NPN Epitaxial Planar Silicon Transistors (Sanyo Semicon Device)
  • 2SA1404 - PNP/NPN Epitaxial Planar Silicon Transistors (Sanyo Semicon Device)
Other Datasheets by Toshiba Semiconductor
  • 2SA1425 - Silicon PNP Epitaxial Type Transistor
  • 2SA1428 - Silicon PNP Epitaxial Type Transistor
  • 2SA1408 - Silicon PNP Epitaxial Type Transistor
  • 2SA1430 - Silicon PNP Epitaxial Type Transistor
  • 2SA1431 - Silicon PNP Epitaxial Type Transistor
  • 2SA1432 - Silicon PNP Epitaxial Type Transistor
  • 2SA1451A - TRANSISTOR
  • 2SA1452A - TRANSISTOR

Full PDF Text Transcription

Click to expand full text
TOSHIBA Transistor Silicon PNP Epitaxial Type (PCT Process) 2SA1429 Power Amplifier Applications Power Switching Applications 2SA1429 Unit: mm • Low collector saturation voltage: VCE (sat) = −0.5 V (max) (IC = −1 A) • High-speed switching: tstg = 1.0 μs (typ.) • Complementary to 2SC3669. Absolute Maximum Ratings (Ta = 25°C) Characteristics Symbol Rating Unit Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Base current Collector power dissipation Junction temperature Storage temperature range VCBO VCEO VEBO IC IB PC Tj Tstg −80 −80 −5 −2 −1 1000 150 −55 to 150 V V V A A mW °C °C JEDEC JEITA TOSHIBA ― ― 2-7D101A Note1: Using continuously under heavy loads (e.g. the application of high Weight: 0.2 g (typ.
