2SK2841 Datasheet - Toshiba Semiconductor

2SK2841_ToshibaSemiconductor.pdf

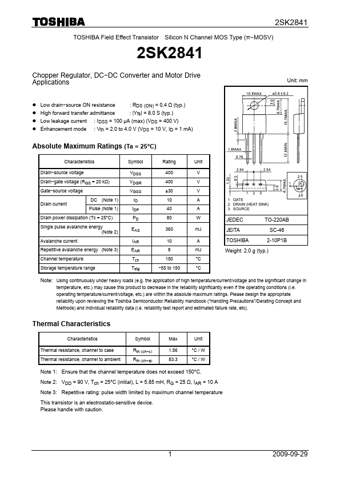

Preview of 2SK2841 PDF
2SK2841 Datasheet Preview Page 2 2SK2841 Datasheet Preview Page 3

Datasheet Details

Part number:

2SK2841

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

411.09 KB

Description:

N-channel mosfet.

2SK2841, N-Channel MOSFET

2SK2841 TOSHIBA Field Effect Transistor Silicon N Channel MOS Type (π MOSV) 2SK2841 Chopper Regulator, DC DC Converter and Motor Drive Applications Unit: mm z Low drain source ON resistance : RDS (ON) = 0.4 Ω (typ.) z High forward transfer admittance : |Yfs| = 8.0 S (typ.) z Low leakage current : IDSS = 100 μA (max) (VDS = 400 V) z Enhancement mode : Vth = 2.0 to 4.0 V (VDS = 10 V, ID = 1 mA) Absolute Maximum Ratings (Ta = 25°C) Characteristics Symbol Rating

2SK2841 Features

* tibility of Product. Please use Product in compliance with all applicable laws and regulations that regulate the inclusion or use of controlled substances, including without limitation, the EU RoHS Directive. TOSHIBA assumes no liability for damages or losses occurring as a result of noncompliance w
