MT3S37T - VCO OSCILLETOR STAGE UHF LOW NOISE AMPLIFIER APPLICATION

Name: MT3S37T
SKU: MT3S37T-560031

Toshiba Semiconductor

The MT3S37T by Toshiba Semiconductor is a VCO OSCILLETOR STAGE UHF LOW NOISE AMPLIFIER APPLICATION. Below is the official datasheet preview.

📥 Download Datasheet

MT3S37T VCO OSCILLETOR STAGE UHF LOW NOISE AMPLIFIER APPLICATION by Toshiba Semiconductor - Datasheet Preview — Official preview page of the **MT3S37T** VCO OSCILLETOR STAGE UHF LOW NOISE AMPLIFIER APPLICATION datasheet (Toshiba Semiconductor).

Datasheet Details

Part number	MT3S37T
Manufacturer	Toshiba Semiconductor
File Size	149.86 KB
Description	VCO OSCILLETOR STAGE UHF LOW NOISE AMPLIFIER APPLICATION
Datasheet	MT3S37T_ToshibaSemiconductor.pdf

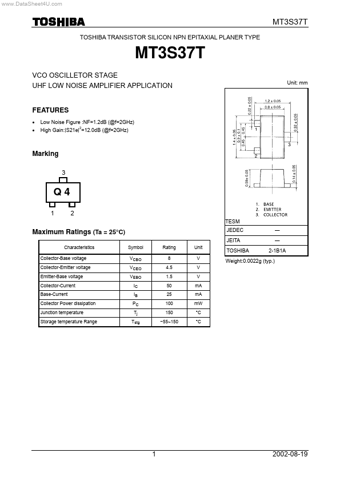

Additional preview pages of the MT3S37T datasheet.

MT3S37T Product details

Features

Low Noise Figure :NF=1.2dB (@f=2GHz) High Gain:|S21e| =12.0dB (@f=2GHz) 2 Marking 3 Q4 1 2 TESM JEDEC JEITA Characteristics Collector-Base voltage Collector-Emitter voltage Emitter-Base voltage Collector-Current Base-Current Collector Power dissipation Junction temperature Storage temperature Range Symbol VCBO VCEO VEBO IC IB PC Tj Tstg Rating 8 4.5 1.5 50 25 100 150.
55~150 Unit V V V mA mA mW °C °C Maximum Ratings (Ta = 25°C) ― ― 2-1B1A.
