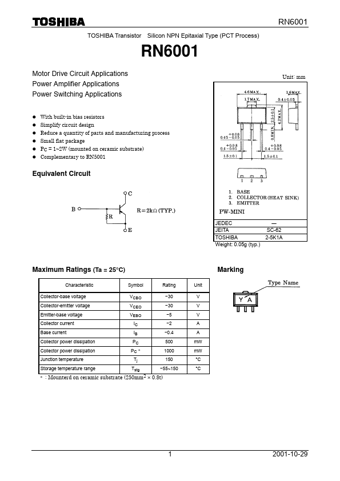

RN6001 TOSHIBA Transistor Silicon NPN Epitaxial Type (PCT Process) RN6001 Motor Drive Circuit Applications Power Amplifier Applications Power Switching Applications l With built-in bias resistors l Simplify circuit design l Reduce a quantity of parts and manufacturing process l Small flat package l PC = 1~2W (mounted on ceramic substrate) l Complementary to RN5001 Unit: mm Equivalent Circuit JEDEC JEITA TOSHIBA Weight: 0.05g (typ.) ― SC-62 2-5K1A Maximum Ratings (Ta = 25°C) Characteristic C

RN6001_ToshibaSemiconductor.pdf

Preview of RN6001 PDF
RN6001 Datasheet Preview Page 2 RN6001 Datasheet Preview Page 3

Datasheet Details

Part number:

RN6001

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

90.91 KB

Description:

Silicon npn transistor.
