RN6002 Silicon NPN Transistor

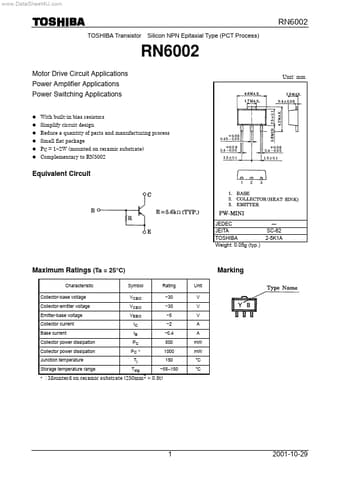

www.DataSheet4U.com RN6002 TOSHIBA Transistor Silicon NPN Epitaxial Type (PCT Process) RN6002 Motor Drive Circuit Applications Power Amplifier Applications Power Switching Applications l With built-in bias resistors l Simplify circuit design l Reduce a quantity of parts and manufacturing process l Small flat package l PC = 1~2W (mounted on ceramic substrate) l Complementary to RN5002 Unit: mm Equivalent Circuit JEDEC JEITA TOSHIBA Weight: 0.05g (typ.) ― SC-62 2-5K1A Maximum Ratings (Ta = 2.
