RN6006 Silicon NPN Transistor

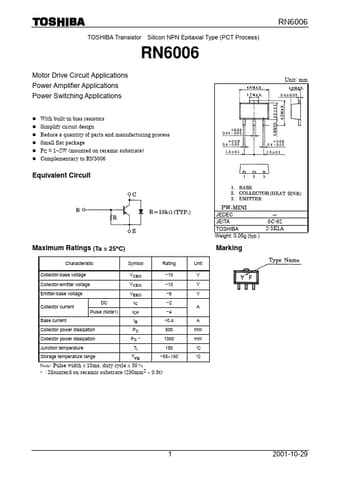

RN6006 TOSHIBA Transistor Silicon NPN Epitaxial Type (PCT Process) RN6006 Motor Drive Circuit Applications Power Amplifier Applications Power Switching Applications l With built-in bias resistors l Simplify circuit design l Reduce a quantity of parts and manufacturing process l Small flat package l PC = 1~2W (mounted on ceramic substrate) l Complementary to RN5006 Unit: mm Equivalent Circuit JEDEC JEITA TOSHIBA Weight: 0.05g (typ.) ― SC-62 2-5K1A Maximum Ratings (Ta = 25°C) Characteristic C.
