SSM6P54TU Datasheet - Toshiba Semiconductor

SSM6P54TU P-Channel MOSFET

SSM6P54TU TOSHIBA Field Effect Transistor Silicon P Channel MOS Type SSM6P54TU ○ High-Speed Switching Applications ○ Power Management Switch Applications 1.5 V drive Suitable for high-density mounting due to compact package Low on-resistance : Ron = 228 mΩ (max) (@ VGS = -2.5 V) : Ron = 350 mΩ (max) (@ VGS = -1.8 V) : Ron = 555 mΩ (max) (@ VGS = -1.5 V) Absolute Maximum Ratings (Ta = 25°C) Characteristics Symbol Rating Unit Drain-Source voltage Gate-Source vo.

SSM6P54TU Datasheet (224.43 KB)

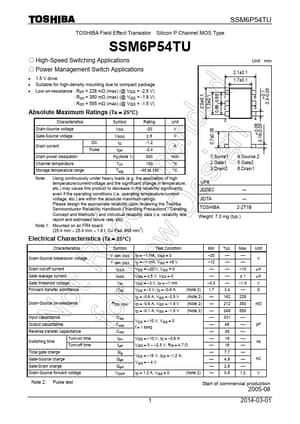

Preview of SSM6P54TU PDF

Datasheet Details

Part number:

SSM6P54TU

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

224.43 KB

Description:

P-channel mosfet.
