TC74AC10FN, TC74AC10F - Triple 3-Input NAND Gate

Toshiba Semiconductor

Datasheet Details

Part number	TC74AC10FN, TC74AC10F
Manufacturer	Toshiba Semiconductor
File Size	260.74 KB
Description	Triple 3-Input NAND Gate
Datasheet	TC74AC10F_ToshibaSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: TC74AC10FN, TC74AC10F. Please refer to the document for exact specifications by model.

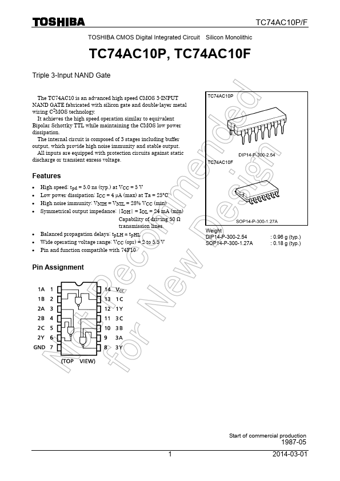

High speed: tpd = 5.0 ns (typ. ) at VCC = 5 V.
Low power dissipation: ICC = 4 μA (max) at Ta = 25°C.
High noise immunity: VNIH = VNIL = 28% VCC (min).
Symmetrical output impedance: |IOH| = IOL = 24 mA (min) Capability of driving 50 Ω transmission lines.
Balanced propagation delays: tpLH ∼.
tpHL.
Wide operating voltage range: VCC (opr) = 2 to 5.5 V.
Pin and function compatible with 74F10 Pin Assignment Note: xxxFN (JEDEC SOP.
