TK5A50D, N-Channel MOSFET

TK5A50D TOSHIBA Field Effect Transistor Silicon N Channel MOS Type (π-MOSⅦ) TK5A50D Switching Regulator Applications * Low drain-source ON-re.

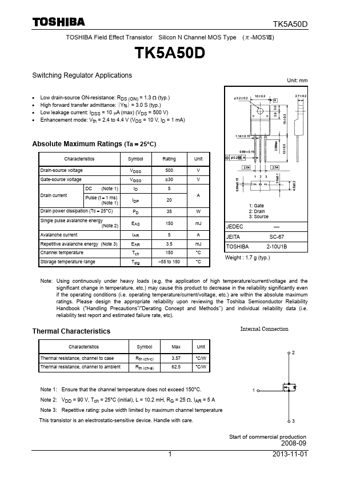

datasheet Preview Page 1 from Datasheet4u.com

TK5A50D_ToshibaSemiconductor.pdf

TK5A50D Datasheet Preview — Preview of TK5A50D PDF

Datasheet Details

Part number:

TK5A50D

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

174.11 KB

Description:

N-Channel MOSFET

Applications

* Low drain-source ON-resistance: RDS (ON) = 1.3 Ω (typ. )
* High forward transfer admittance: ⎪Yfs⎪ = 3.0 S (typ. )
* Low leakage current: IDSS = 10 μA (max) (VDS = 500 V)
* Enhancement mode: Vth = 2.4 to 4.4 V (VDS = 10 V, ID = 1 mA) Unit: mm Absolute Maximum Rating
