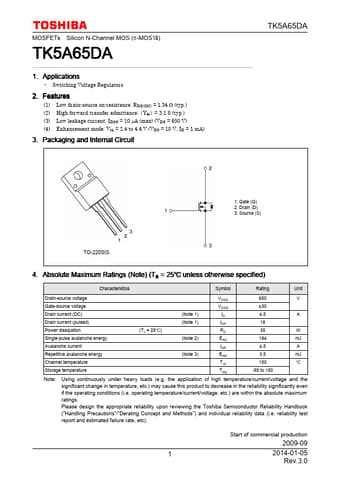

TK5A65DA - Silicon N-Channel MOSFET

Toshiba Semiconductor

Datasheet Details

Part number	TK5A65DA
Manufacturer	Toshiba ↗ Semiconductor
File Size	229.56 KB
Description	Silicon N-Channel MOSFET
Datasheet	TK5A65DA-ToshibaSemiconductor.pdf

(1) (2) (3) (4) Low drain-source on-resistance: RDS(ON) = 1.34 Ω (typ. ) High forward transfer admittance: |Yfs| = 3.1 S (typ. ) Low leakage current: IDSS = 10 µA (max) (VDS = 650 V) Enhancement mode: Vth = 2.4 to 4.4 V (VDS = 10 V, ID = 1 mA) 3. Packaging and Internal Circuit 1: Gate (G) 2: Drain (D) 3: Source (S) TO-220SIS 4. Absolute Maximum Ratings (Note) (Ta = 25 unless otherwise specified) Characteristics Drain-source voltage Gate-source voltage Drain current (DC) Drain current (pulsed).
