TPC8105-H P-Channel MOSFET

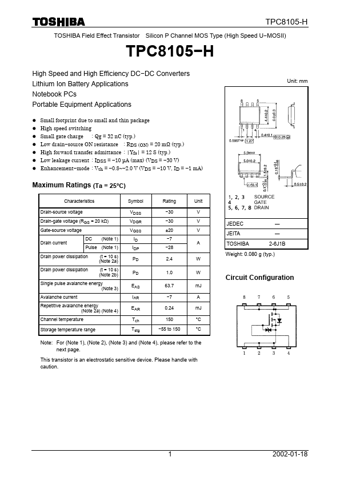

TPC8105-H TOSHIBA Field Effect Transistor Silicon P Channel MOS Type (High Speed U MOSII) TPC8105 H High Speed and High Efficiency DC DC Converters Lithium Ion Battery Applications Notebook PCs Portable Equipment Applications l Small footprint due to small and thin package l High speed switching l Small gate charge : Qg = 32 nC (typ.) l Low drain source ON resistance : RDS (ON) = 20 mΩ (typ.) l High forward transfer admittance : |Yfs| = 12 S (typ.) l Low leakage.
