TPC8126 MOSFET

TPC8126 TOSHIBA Field Effect Transistor Silicon P Channel MOS Type (U-MOSⅥ) TPC8126 Lithium Ion Battery Applications Power Management Switch Applications Unit: mm Small footprint due to small and thin package Low drain-source ON-resistance: RDS (ON) = 7.5 mΩ (typ.) Low leakage current: IDSS = 10 μA (max) (VDS = 30 V) Enhancement mode: Vth = 0.8 to 2.0 V (VDS = 10 V, ID = 0.5mA) Absolute Maximum Rati.

TPC8126_Toshiba.pdf

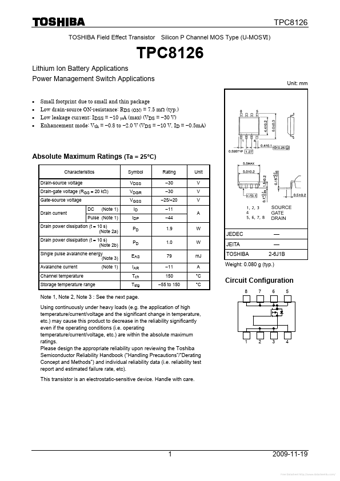

Preview of TPC8126 PDF
TPC8126 Datasheet Preview Page 2 TPC8126 Datasheet Preview Page 3

Datasheet Details

Part number:

TPC8126

Manufacturer:

Toshiba ↗

File Size:

237.81 KB

Description:

Mosfet.
