TPC8122 Datasheet - Toshiba Semiconductor

TPC8122 Silicon P-Channel MOSFET

TPC8122 TOSHIBA Field Effect Transistor Silicon P Channel MOS Type (U-MOSⅤ) TPC8122 Lithium Ion Battery Applications Notebook PC Applications Unit: mm Small footprint due to small and thin package Low drain-source ON resistance: RDS (ON) = 6.3 mΩ (typ.) High forward transfer admittance: |Yfs| = 30S (typ.) Low leakage current: IDSS = 10μA (max) (VDS = 30 V) Enhancement mode: Vth = 0.8 to 2.0 V (VDS = .

TPC8122 Datasheet (286.74 KB)

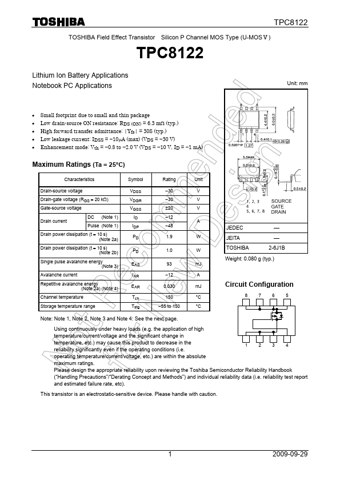

Preview of TPC8122 PDF

Datasheet Details

Part number:

TPC8122

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

286.74 KB

Description:

Silicon p-channel mosfet.
