K5A60D Datasheet - Toshiba

K5A60D TK5A60D

TK5A60D TOSHIBA Field Effect Transistor Silicon N Channel MOS Type (π-MOSⅦ) TK5A60D Switching Regulator Applications Low drain-source ON-resistance: RDS (ON) = 1.2 Ω (typ.) High forward transfer admittance: ⎪Yfs⎪ = 3.0 S (typ.) Low leakage current: IDSS = 10 μA (max) (VDS = 600 V) Enhancement-mode: Vth = 2.4 to 4.4 V (VDS = 10 V, ID = 1 mA) Ф3.2 ± 0.2 10 ± 0.3 A 3.9 3.0 Unit: mm 2.7 ± 0.2 1.14 ± 0.15 2.8 MAX. 2.54 1 2 3 2.6 ± 0.1 13 ± 0.5 Absolute Maxi.

K5A60D Datasheet (231.34 KB)

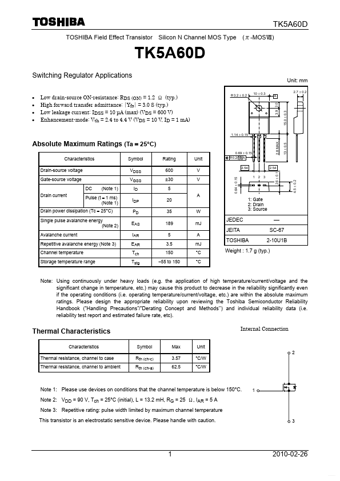

K5A60D Datasheet Preview — Preview of K5A60D PDF

Datasheet Details

Part number:

K5A60D

Manufacturer:

Toshiba ↗

File Size:

231.34 KB

Description:

Tk5a60d.
