* Low figure-of-merit (FOM) Ron x Qg
* Low input capacitance (Ciss)
* Reduced switching and conduction losses
* Ultra low gate charge (Qg)
* Avalanche energy rated (UIS) APPLICATIONS
* Server and telecom power supplies
* Switch mode power suppl
K5A65DA
VBsemi
286.55 KB
N-channel 650v power mosfet.

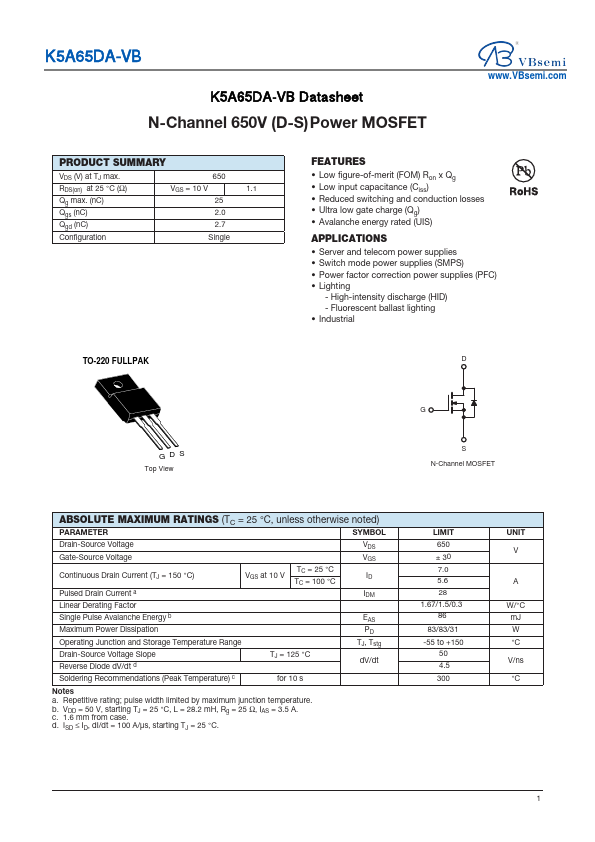

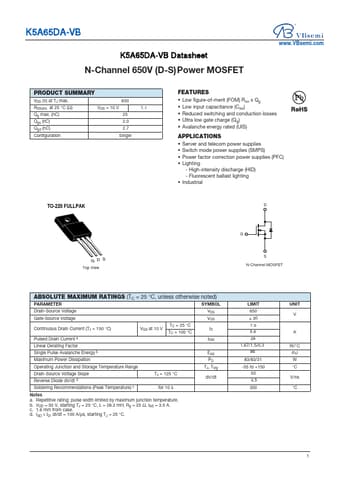

K5A65DA-VB K5A65DA-VB Datasheet /$IBOOFM7 %4 Power MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) at TJ max. RDS(on) at 25 °C (Ω) Qg max. (nC.
