RN1110 - Silicon NPN Epitaxial Type Transistors

Datasheet Summary

Features

  • (1) AEC-Q101 qualified (Please see the orderable part number list) (2) The integrated bias resistor reduces the number of external parts required, making it possible to reduce system size and assembly time. (3) Toshiba offers transistors with a wide range of resistance to accommodate various circuit designs. (4) Complementary to RN2110,RN2111 3. Equivalent Circuit 4. Packaging and Pin Assignment SSM 1: Base 2: Emitter 3: Collector ©2021 1 Toshiba Electronic Devices & Storage Corporation S.

📥 Download Datasheet

Datasheet preview – RN1110

Datasheet Details

Part number RN1110
Manufacturer Toshiba
File Size 372.35 KB
Description Silicon NPN Epitaxial Type Transistors
Datasheet download datasheet RN1110 Datasheet
Additional preview pages of the RN1110 datasheet.

📁 Similar Datasheet

  • RN1111 - BUSSED RESISTOR NETWORK (California Micro Devices Corp)
  • RN1102 - Isolated Resistor Termination Network (California Micro Devices Corp)
  • RN1120 - Rectifier Diodes (ST Microelectronics)
  • RN112BPC - Phone Jacks (ETC)
  • RN1001 - Silicon NPN Transistor (Toshiba Semiconductor)
  • RN1002 - Silicon NPN Transistor (Toshiba Semiconductor)
  • RN1003 - Silicon NPN Transistor (Toshiba Semiconductor)
  • RN1004 - Silicon NPN Transistor (Toshiba Semiconductor)
  • RN1005 - Silicon NPN Transistor (Toshiba Semiconductor)
  • RN1006 - Silicon NPN Transistor (Toshiba Semiconductor)
Other Datasheets by Toshiba
  • RN1110MFV - Silicon NPN Epitaxial Type Transistors
  • RN1111 - Silicon NPN Epitaxial Type Transistors
  • RN1111MFV - Silicon NPN Epitaxial Type Transistors
  • RN1112 - Silicon NPN Epitaxial Type Transistors
  • RN1112F - Silicon NPN Epitaxial Type Transistor
  • RN1112MFV - Silicon NPN Epitaxial Type Transistors
  • RN1113 - Silicon NPN Epitaxial Type Transistors
  • RN1113F - Silicon NPN Epitaxial Type Transistor

Full PDF Text Transcription

Click to expand full text

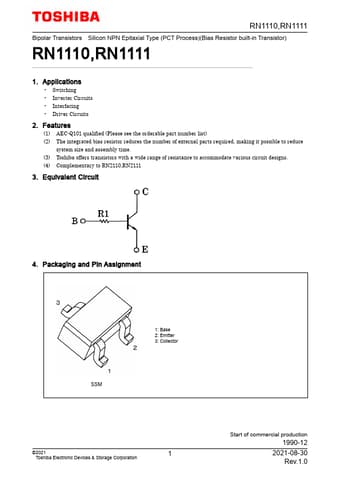

RN1110,RN1111 Bipolar Transistors Silicon NPN Epitaxial Type (PCT Process)(Bias Resistor built-in Transistor) RN1110,RN1111 1. Applications • Switching • Inverter Circuits • Interfacing • Driver Circuits 2. Features (1) AEC-Q101 qualified (Please see the orderable part number list) (2) The integrated bias resistor reduces the number of external parts required, making it possible to reduce system size and assembly time. (3) Toshiba offers transistors with a wide range of resistance to accommodate various circuit designs. (4) Complementary to RN2110,RN2111 3. Equivalent Circuit 4. Packaging and Pin Assignment SSM 1: Base 2: Emitter 3: Collector ©2021 1 Toshiba Electronic Devices & Storage Corporation Start of commercial production 1990-12 2021-08-30 Rev.1.0 5.
