RN4901, Silicon PNP/NPN Epitaxial Type Transistors

RN4901 Bipolar Transistors Silicon PNP/NPN Epitaxial Type (PCT Process)(Bias Resistor built-in Transistor) RN4901 1.Applications * Switching .

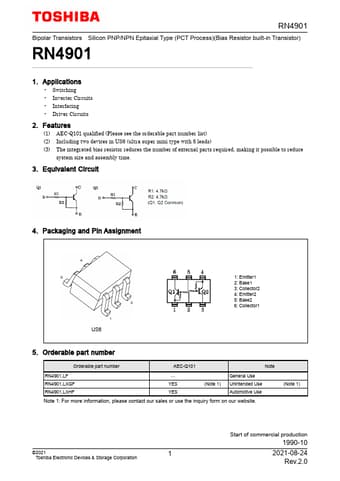

datasheet Preview Page 1 from Datasheet4u.com

RN4901-Toshiba.pdf

RN4901 Datasheet Preview — Preview of RN4901 PDF

Datasheet Details

Part number:

RN4901

Manufacturer:

Toshiba ↗

File Size:

402.26 KB

Description:

Silicon PNP/NPN Epitaxial Type Transistors

Features

* (1) AEC-Q101 qualified (Please see the orderable part number list) (2) Including two devices in US6 (ultra super mini type with 6 leads) (3) The integrated bias resistor reduces the number of external parts required, making it possible to reduce system size and assembly time. 3. Equivalent Circuit

Applications

* Switching
* Inverter Circuits
* Interfacing
