TA8002AS - 5V VOLTAGE REGULATOR WITH RESET TIMER

This page provides the datasheet information for the TA8002AS, a member of the TA8002S 5V VOLTAGE REGULATOR WITH RESET TIMER family.

Datasheet Summary

Description

PIN No.

Power supply starting pin.

The starting current is supplied through a resistor to which the input voltage is applied.

0.7) / (200+R1)

Features

  • l Accurate output l Standby output l Low bias current l Power-on reset timer l Operating temperature range l Wide operating voltage range l Small SIP-7 pin : 5 ± 0.5V (TA8002AS : 5 ± 0.25V) : 3.5V : 150µA (Typ. ) : from.
  • 40 to 85°C : 40V (max. ) Weight: 0.7 g (typ. ) BLOCK.

📥 Download Datasheet

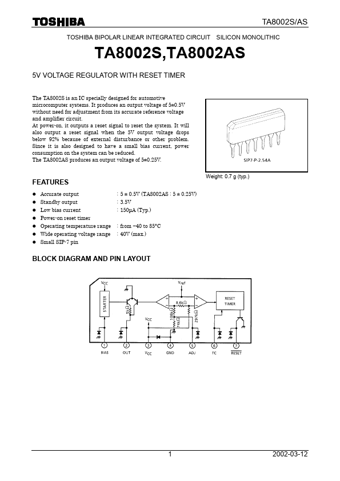

Datasheet preview – TA8002AS

Datasheet Details

Part number TA8002AS
Manufacturer Toshiba
File Size 193.97 KB
Description 5V VOLTAGE REGULATOR WITH RESET TIMER
Datasheet download datasheet TA8002AS Datasheet
Additional preview pages of the TA8002AS datasheet.

📁 Similar Datasheet

  • TA80C186XL - (TA80C186XL / TA80C188XL) 16-Bit High Integration Embedded Processors (Intel)
  • TA80C188XL - (TA80C186XL / TA80C188XL) 16-Bit High Integration Embedded Processors (Intel)
  • TA8120P - C-QUAM AM STEREO DECODER (Toshiba Semiconductor)
  • TA8122AF - 3V AV/FM 1CHIP TUNER (Toshiba Semiconductor)
  • TA8122AN - 3V AV/FM 1CHIP TUNER IC (Toshiba Semiconductor)
  • TA8122N - 3V AV/FM 1CHIP TUNER (Toshiba Semiconductor)
  • TA8123AF - 3V AV/FM 1CHIP TUNER (Toshiba Semiconductor)
  • TA8123AN - 3V AV/FM 1CHIP TUNER (Toshiba Semiconductor)
  • TA8124F - C-QUAM AM (Motorola)
  • TA8124P - C-QUAM AM (Motorola)
Other Datasheets by Toshiba
  • TA8002S - 5V VOLTAGE REGULATOR WITH RESET TIMER
  • TA8000F - 5V VOLTAGE REGULATOR WITH WATCHDOG TIMER
  • TA8000S - 5V VOLTAGE REGULATOR WITH WATCHDOG TIMER
  • TA8001S - 5V VOLTAGE REGULATOR WITH RESET TIMER
  • TA8004AS - 5V LOW DROPOUT REGULATOR WITH RESET TIMER
  • TA8005F - 5V VOLTAGE REGULATOR WITH WATCHDOG TIMER
  • TA8005S - 5V VOLTAGE REGULATOR WITH WATCHDOG TIMER
  • TA8006ASN - 5V VOLTAGE REGULATOR WITH WATCHDOG TIMER

Full PDF Text Transcription

Click to expand full text
TA8002S/AS TOSHIBA BIPOLAR LINEAR INTEGRATED CIRCUIT SILICON MONOLITHIC TA8002S,TA8002AS 5V VOLTAGE REGULATOR WITH RESET TIMER The TA8002S is an IC specially designed for automotive microcomputer systems. It produces an output voltage of 5±0.5V without need for adjustment from its accurate reference voltage and amplifier circuit. At power-on, it outputs a reset signal to reset the system. It will also output a reset signal when the 5V output voltage drops below 92% because of external disturbance or other problem. Since it is also designed to have a small bias current, power consumption on the system can be reduced. The TA8002AS produces an output voltage of 5±0.25V.
