TA8001S - 5V VOLTAGE REGULATOR WITH RESET TIMER

Datasheet Summary

Description

PIN No.

Power supply starting pin.

The starting current is supplied through a resistor to which the input voltage is applied.

0.6) / (200+R1) (mA) w

Features

  • l Accurate output l Standby output l Low bias current l Power-on reset timer l Operating temperature range l Wide operating voltage range l Small SIP-7 pin : 5 ± 0.5V : 3.5V : 150µA (Typ. ) : from.
  • 40 to 85°C : 30V (max. ) BLOCK.

📥 Download Datasheet

Datasheet preview – TA8001S

Datasheet Details

Part number TA8001S
Manufacturer Toshiba
File Size 194.85 KB
Description 5V VOLTAGE REGULATOR WITH RESET TIMER
Datasheet download datasheet TA8001S Datasheet
Additional preview pages of the TA8001S datasheet.

📁 Similar Datasheet

  • TA80C186XL - (TA80C186XL / TA80C188XL) 16-Bit High Integration Embedded Processors (Intel)
  • TA80C188XL - (TA80C186XL / TA80C188XL) 16-Bit High Integration Embedded Processors (Intel)
  • TA8120P - C-QUAM AM STEREO DECODER (Toshiba Semiconductor)
  • TA8122AF - 3V AV/FM 1CHIP TUNER (Toshiba Semiconductor)
  • TA8122AN - 3V AV/FM 1CHIP TUNER IC (Toshiba Semiconductor)
  • TA8122N - 3V AV/FM 1CHIP TUNER (Toshiba Semiconductor)
  • TA8123AF - 3V AV/FM 1CHIP TUNER (Toshiba Semiconductor)
  • TA8123AN - 3V AV/FM 1CHIP TUNER (Toshiba Semiconductor)
  • TA8124F - C-QUAM AM (Motorola)
  • TA8124P - C-QUAM AM (Motorola)
Other Datasheets by Toshiba
  • TA8000F - 5V VOLTAGE REGULATOR WITH WATCHDOG TIMER
  • TA8000S - 5V VOLTAGE REGULATOR WITH WATCHDOG TIMER
  • TA8002AS - 5V VOLTAGE REGULATOR WITH RESET TIMER
  • TA8002S - 5V VOLTAGE REGULATOR WITH RESET TIMER
  • TA8004AS - 5V LOW DROPOUT REGULATOR WITH RESET TIMER
  • TA8005F - 5V VOLTAGE REGULATOR WITH WATCHDOG TIMER
  • TA8005S - 5V VOLTAGE REGULATOR WITH WATCHDOG TIMER
  • TA8006ASN - 5V VOLTAGE REGULATOR WITH WATCHDOG TIMER

Full PDF Text Transcription

Click to expand full text

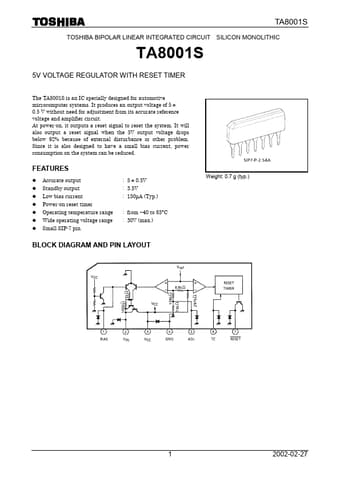

TA8001S TOSHIBA BIPOLAR LINEAR INTEGRATED CIRCUIT SILICON MONOLITHIC TA8001S 5V VOLTAGE REGULATOR WITH RESET TIMER The TA8001S is an IC specially designed for automotive microcomputer systems. It produces an output voltage of 5 ± 0.5 V without need for adjustment from its accurate reference voltage and amplifier circuit. At power-on, it outputs a reset signal to reset the system. It will also output a reset signal when the 5V output voltage drops below 92% because of external disturbance or other problem. Since it is also designed to have a small bias current, power consumption on the system can be reduced. FEATURES l Accurate output l Standby output l Low bias current l Power-on reset timer l Operating temperature range l Wide operating voltage range l Small SIP-7 pin : 5 ± 0.5V : 3.
