TA8000F 5V VOLTAGE REGULATOR WITH WATCHDOG TIMER

PIN No. TA8000S TA8000F 1 12 2 14 31 43 54 65 77 88 9 10 ― 2, 6, 9, 11, 13 SYMBOL DESCRIPTION BIAS OUT COMP VCC GND ADJ RESET TC CK NC Power supply start pin. The start current is supplied from the input voltage through a resistor. The output current *obtained from this start curren.

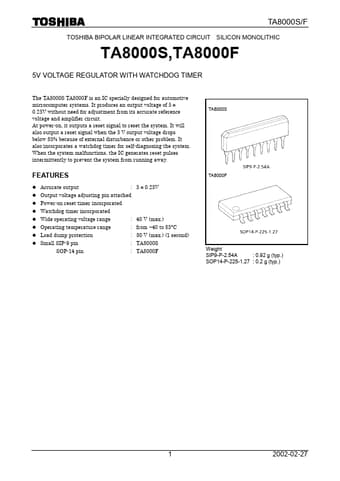

TA8000S/F TOSHIBA BIPOLAR LINEAR INTEGRATED CIRCUIT SILICON MONOLITHIC TA8000S,TA8000F 5V VOLTAGE REGULATOR WITH WATCHDOG TIMER The TA8000S TA8000F is an IC specially designed for automotive microcomputer systems. It produces an output voltage of 5 ± 0.25V without need for adjustment from its accurate reference voltage and amplifier circuit. At power-on, it outputs a reset signal to reset the system. It will also output a reset signal when the 5 V output voltage drops below 85% because of exter.

TA8000F Features

* l Accurate output : 5 ± 0.25V l Output voltage adjusting pin attached l Power-on reset timer incorporated l Watchdog timer incorporated l Wide operating voltage range : 40 V (max.) l Operating temperature range : from

* 40 to 85°C l Load dump protection : 80 V (max.) (1 second) l
