TA8186P - AM/FM IF+MPX

TA8186P Description

TOSHIBA Bipolar Linear Integrated Circuit Silicon Monolithic TA8186P AM / FM IF + MPX TA8186P is the AM / FM IF + MPX system IC, which is designed fo.

TA8186P Features

* Compact package (DIP16), and small number of external parts.
* AM IFT is also used for VCO resonator.
* Built
* in FM soft muting circuit.
* Operating supply voltage range: VCC (opr) = 3.5~13V (Ta = 25°C) At FM soft mute using: VCC (opr) = 3.5~9V (Ta = 25°C) Weight: 1.00g (t

TA8186P Applications

* (computer, personal equipment, office equipment, measuring equipment, industrial robotics, domestic appliances, etc. ). These TOSHIBA products are neither intended nor warranted for usage in equipment that requires extraordinarily high quality and/or reliability or a malfunction or failure of which m

📥 Download Datasheet

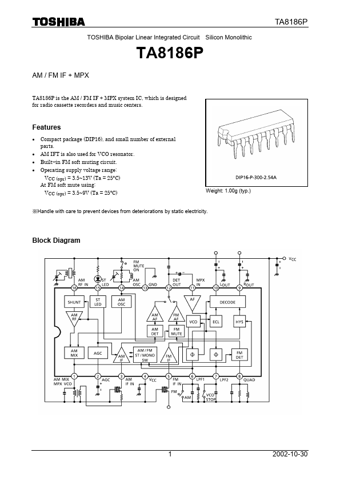

Preview of TA8186P PDF
datasheet Preview Page 2 datasheet Preview Page 3
