TD62083AF - 8CH DARLINGTON SINK DRIVER

Toshiba

Datasheet Details

Part number	TD62083AF
Manufacturer	Toshiba
File Size	237.43 KB
Description	8CH DARLINGTON SINK DRIVER

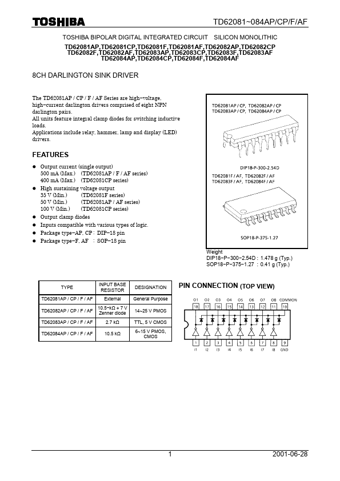

Datasheet	TD62083AF_ToshibaSemiconductor.pdf

l Output current (single output) 500 mA (Max. ) (TD62081AP / F / AF series) 400 mA (Max. ) (TD62081CP series) l High sustaining voltage output 35 V (Min. ) (TD62081F series) 50 V (Min. ) (TD62081AP / AF series) 100 V (Min. ) (TD62081CP series) l Output clamp diodes l Inputs compatible with various types of logic. l Package type.
AP, CP : DIP.
18 pin l Package type.
F, AF : SOP.
18 pin Weight DIP18.
P.
300.
2.54D : 1.478 g (Typ. ) SOP18.
P.
