TD62083AFG, TD62083APG - 8ch Darlington Sink Driver

Toshiba

Datasheet Details

Part number	TD62083AFG, TD62083APG
Manufacturer	Toshiba
File Size	225.29 KB
Description	8ch Darlington Sink Driver
Datasheet	TD62083APG-Toshiba.pdf
Note	This datasheet PDF includes multiple part numbers: TD62083AFG, TD62083APG. Please refer to the document for exact specifications by model.

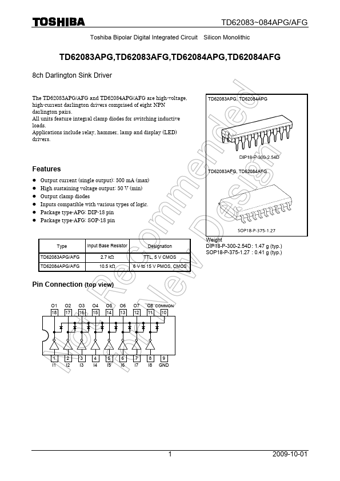

z Output current (single output): 500 mA (max) z High sustaining voltage output: 50 V (min) z Output clamp diodes z Inputs compatible with various types of logic. z Package type-APG: DIP-18 pin z Package type-AFG: SOP-18 pin Type Input Base Resistor Designation TD62083APG/AFG TD62084APG/AFG 2.7 kΩ 10.5 kΩ TTL, 5 V CMOS 6 V to 15 V PMOS, CMOS Pin Connection (top view) O1 O2 O3 O4 O5 O6 O7 O8 COMMON 18 17 16 15 14 13 12 11 10 TD62083AFG, TD62084AFG Weight DIP18-P-300-2.54D : 1.47 g (typ. ).
