* l Output current (single output) 500 mA (Max.) (TD62081AP / F / AF series) 400 mA (Max.) (TD62081CP series) l High sustaining voltage output 35 V (Min.) (TD62081F series) 50 V (Min.) (TD62081AP / AF series) 100 V (Min.) (TD62081CP series) l Output clamp diodes l Inputs compatible with vario
TD62083AP Datasheet (228.36 KB)
TD62083AP
228.36 KB
8ch darlington sink driver.

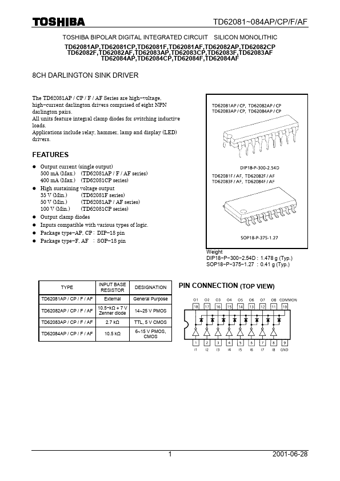

TD62081~084AP/CP/F/AF
TOSHIBA BIPOLAR DIGITAL INTEGRATED CIRCUIT SILICON MONOLITHIC TD62081AP,TD62081CP,TD62081F,TD62081AF,TD62082AP,TD62082CP TD62082.
