TD62083APG 8ch Darlington Sink Driver

TD62083APG Description

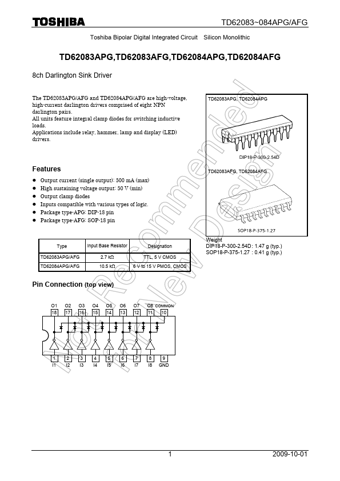

TD62083~084APG/AFG Toshiba Bipolar Digital Integrated Circuit Silicon Monolithic TD62083APG,TD62083AFG,TD62084APG,TD62084AFG 8ch Darlington Sink Drive.

TD62083APG Features

* z Output current (single output): 500 mA (max) z High sustaining voltage output: 50 V (min) z Output clamp diodes z Inputs compatible with various types of logic. z Package type-APG: DIP-18 pin z Package type-AFG: SOP-18 pin Type Input Base Resistor Designation TD62083APG/AFG TD62084APG/AFG 2.7
