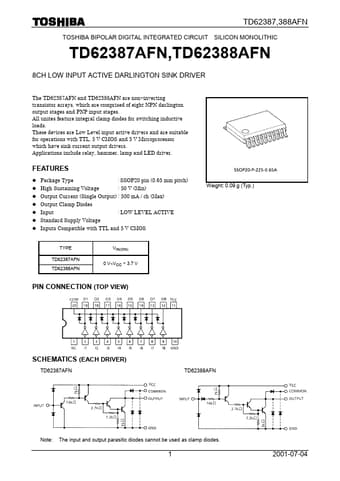

TD62387AFN Datasheet, Driver, Toshiba

TD62387AFN Features

• Driver l Package Type : SSOP20 pin (0.65 mm pitch) l High Sustaining Voltage : 50 V (Min) l Output Current (Single Output) : 500 mA / ch (Max) l Output Clamp Diodes l Input : LOW LEVEL

PDF File Details

Part number:

TD62387AFN

Manufacturer:

Toshiba ↗

File Size:

195.32kb

Download:

📄 Datasheet

Description:

8ch low input active darlington sink driver.

TD62387AFN Application

• Applications include relay, hammer, lamp and LED driver. FEATURES l Package Type : SSOP20 pin (0.65 mm pitch) l High Sustaining Voltage : 50 V
