TD62303P, TD62303F - 6CH DIGIT DRIVER

Toshiba Semiconductor

📥 Download Datasheet

TD62303P Datasheet Preview — This datasheet PDF includes multiple part numbers: TD62303P, TD62303F. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: TD62303P, TD62303F
Manufacturer: Toshiba ↗ Semiconductor
File Size: 170.30 KB
Datasheet: TD62303F_ToshibaSemiconductor.pdf
Description: 6CH DIGIT DRIVER
Note: This datasheet PDF includes multiple part numbers: TD62303P, TD62303F.
Please refer to the document for exact specifications by model.

TD62303P Product details

Features

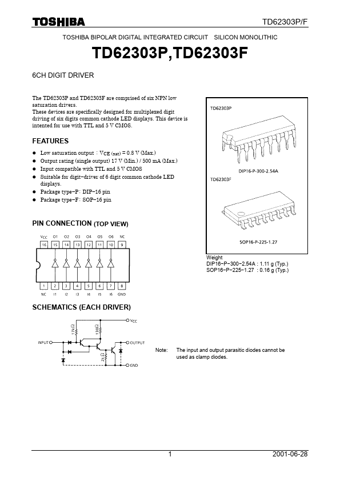

l Low saturation output : VCE (sat) = 0.8 V (Max. ) l Output rating (single output) 17 V (Min. ) / 500 mA (Max. ) l Input compatible with TTL and 5 V CMOS l Suitable for digit.
driver of 6 digit common cathode LED displays. l Package type.
P : DIP.
16 pin l Package type.
F : SOP.
16 pin PIN.
