TD62304FB Datasheet - Toshiba

TD62304FB, 7CH LOW INPUT ACTIVE DARLINGTON SINK DRIVER

TD62304,305FB TOSHIBA BIPOLAR DIGITAL INTEGRATED CIRCUIT SILICON MONOLITHIC TD62304FB,TD62305FB 7CH LOW INPUT ACTIVE DARLINGTON SINK DRIVER The TD623.

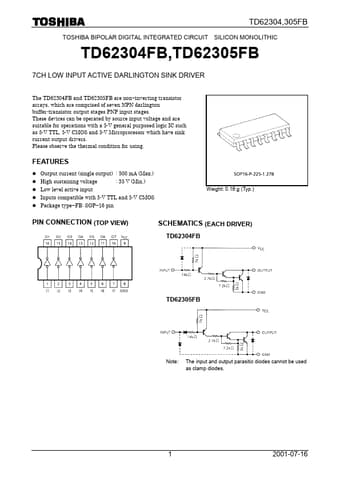

datasheet Preview Page 1 from Datasheet4u.com

TD62304FB_ToshibaSemiconductor.pdf

TD62304FB Datasheet Preview — Preview of TD62304FB PDF

Datasheet Details

Part number:

TD62304FB

Manufacturer:

Toshiba ↗

File Size:

188.28 KB

Description:

7CH LOW INPUT ACTIVE DARLINGTON SINK DRIVER

Features

* l Output current (single output) : 500 mA (Max. ) l High sustaining voltage : 35 V (Min. ) l Low level active input l Inputs compatible with 5-V TTL and 5-V CMOS l Package type
* FB: SOP
* 16 pin Weight: 0.16 g (Typ. ) PIN CONNECTION (TOP VIEW) SCHEMATICS (EACH DRIVER) TD62304FB T

Applications

* (computer, personal equipment, office equipment, measuring equipment, industrial robotics, domestic appliances, etc. ). These TOSHIBA products are neither intended nor warranted for usage in equipment that requires extraordinarily high quality and/or reliability or a malfunction or failure of which m
