* Weight: 0.07 g (typ.) Package Type : SSOP16 pin High Sustaining Voltage : VCE (SUS) = 50 V (MIN.) Output Current (Single Output): IOUT = 500 mA / ch (MAX.) Low Level Active Input Input compatible with 5-V TTL and 5-V CMOS Schematics (each driver) Pin Connection (top view) TD62304AFN TD62
TD62304AFNG Datasheet (352.02 KB)
TD62304AFNG
352.02 KB
7ch low input active darlington sink driver.
TD62304,305AFNG

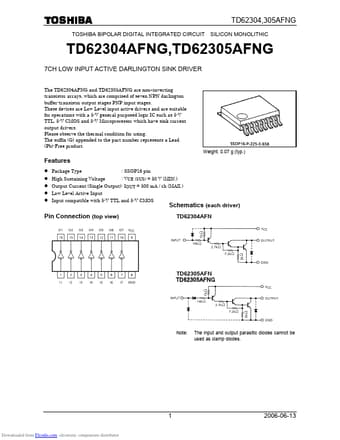

TOSHIBA BIPOLAR DIGITAL INTEGRATED CIRCUIT SILICON MONOLITHIC
TD62304AFNG,TD62305AFNG
7CH LOW INPUT ACTIVE DARLINGTON SINK DRIVER
The.
