TD62301 Datasheet, Driver, Toshiba Semiconductor

TD62301 Features

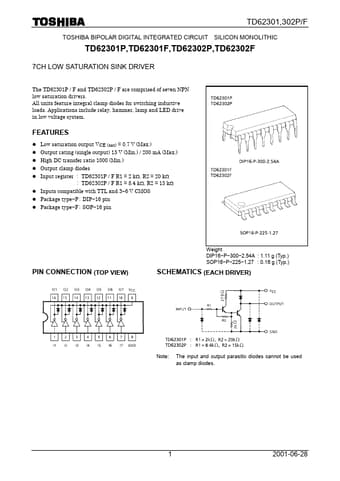

• Driver l Low saturation output VCE (sat) = 0.7 V (Max.) l Output rating (single output) 15 V (Min.) / 200 mA (Max.) l High DC transfer ratio 1000 (Min.) l Output clamp diodes l Input register

PDF File Details

Part number:

TD62301

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

201.58kb

Download:

📄 Datasheet

Description:

(td62301 / td62302) 7ch low saturation sink driver.

TD62301 Application

• Applications include relay, hammer, lamp and LED drive in low voltage system. FEATURES l Low saturation output VCE (sat) = 0.7 V (Max.) l Output rat
