* l Output current (single output) 500 mA (Max.) l High sustaining voltage 35 V (TD62304P/F, 62305P/F) 50 V (TD62304AP/AF, 62305AP/AF) (Min.) l Low level active input l Input compatible with 5-V TTL and 5-V CMOS l Package type-P, AP: DIP-16 pin l Package type-F, AF: SOP-18 pin PIN CONNECTION (TOP VIE
TD62304AF Datasheet (211.35 KB)
TD62304AF
211.35 KB
7ch low active darlington sink driver.
TD62304,305P/AP/F/AF

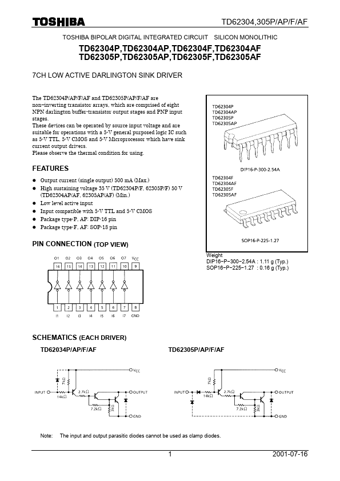

TOSHIBA BIPOLAR DIGITAL INTEGRATED CIRCUIT SILICON MONOLITHIC
TD62304P,TD62304AP,TD62304F,TD62304AF TD62305P,TD62305AP,TD62305F,.
