TD62304F, 7CH LOW ACTIVE DARLINGTON SINK DRIVER

TD62304,305P/AP/F/AF TOSHIBA BIPOLAR DIGITAL INTEGRATED CIRCUIT SILICON MONOLITHIC TD62304P,TD62304AP,TD62304F,TD62304AF TD62305P,TD62305AP,TD62305F,.

datasheet Preview Page 1 from Datasheet4u.com

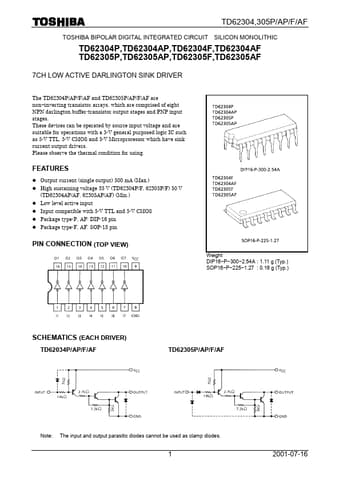

TD62304F_ToshibaSemiconductor.pdf

TD62304F Datasheet Preview — Preview of TD62304F PDF

Datasheet Details

Part number:

TD62304F

Manufacturer:

Toshiba ↗

File Size:

211.35 KB

Description:

7CH LOW ACTIVE DARLINGTON SINK DRIVER

Features

* l Output current (single output) 500 mA (Max. ) l High sustaining voltage 35 V (TD62304P/F, 62305P/F) 50 V (TD62304AP/AF, 62305AP/AF) (Min. ) l Low level active input l Input compatible with 5-V TTL and 5-V CMOS l Package type-P, AP: DIP-16 pin l Package type-F, AF: SOP-18 pin PIN CONNECTION (TOP VIE

Applications

* (computer, personal equipment, office equipment, measuring equipment, industrial robotics, domestic appliances, etc. ). These TOSHIBA products are neither intended nor warranted for usage in equipment that requires extraordinarily high quality and/or reliability or a malfunction or failure of which m
