TEC9011 - Silicon NPN Transistor

Datasheet Summary

Features

. Excellent Noise Figure NF=2.0dB(Typ. ) Unit in mm 51 MAX.

Toshiba

📥 Download Datasheet

Datasheet Details

Part number	TEC9011
Manufacturer	Toshiba
File Size	202.99 KB
Description	Silicon NPN Transistor
Datasheet	TEC9011 Datasheet
Additional preview pages of the TEC9011 datasheet.

📁 Similar Datasheet

TEC9902B - Alarm clock and radio frequency LCD display dedicated IC (ETC)
TEC1-00705T125 - Thermoelectric Cooler (Roithner)
TEC1-12703 - Thermoelectric Cooler (HB)
TEC1-12703 - Thermoelectric (ETC)
TEC1-12703 - Thermoelectric Module (Creative technology)
TEC1-12704 - Thermoelectric cooling module (WELLEN TECHNOlOGY)
TEC1-12705 - Thermoelectric Cooler (HB)
TEC1-12706 - Thermoelectric Cooler (HB)
TEC1-12708 - Thermoelectric Cooler (HB)
TEC1-12710 - Thermoelectric Cooler (HB)

Other Datasheets by Toshiba

TEC9012 - Silicon PNP Transistor
TEC9013 - Silicon NPN Transistor
TEC9014 - Silicon NPN Transistor
TEC9015 - Silicon PNP Transistor
TEC9016 - Silicon NPN Transistor
TEC8012 - Silicon PNP Transistor
TEC8013 - Silicon NPN Transistor

Full PDF Text Transcription

Click to expand full text

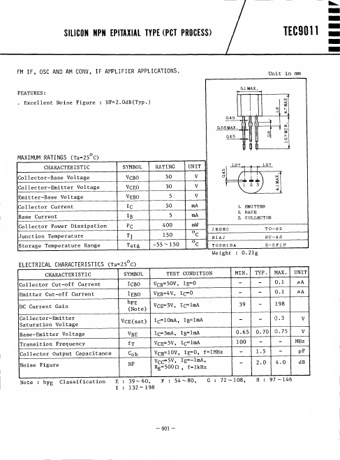

SILICON NPN EPITAXIAL TYPE (PCT PROCESS) TEC9011 FM IF, OSC AND AM CONV, IF AMPLIFIER APPLICATIONS FEATURES . Excellent Noise Figure NF=2.0dB(Typ.) Unit in mm 51 MAX. MAXIMUM RATINGS (Ta=25°C) CHARACTERISTIC Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Base Current Collector Power Dissipation Junction Temperature Storage Temperature Range SYMBOL VCBO VCEO VeBO ic IB PC Cstg RATING 50 30 UNIT 50 mA mA 400 mW 150 -55-150 1. EMITTER 2. BASE & COLLECTOR EI AJ TOSHIBA Weight : 0.21g TO-92 SC-43 2-5F1F ELECTRICAL CHARACTERISTICS (Ta=25°C) CHARACTERISTIC SYMBOL Collector Cut-off Current ICBO Emitter Cut-off Current DC Current Gain lEBO hFE (Note) TEST CONDITION VCB=50V, I E=0 VEB=4V, IC=0 VCE=5V, Ic=lmA MIN. TYP. MAX. 0.1 0.
