TK5A90E - N-Channel MOSFET

Toshiba

📥 Download Datasheet

TK5A90E Datasheet Preview — Preview of TK5A90E PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	TK5A90E
Manufacturer	Toshiba ↗
File Size	388.93 KB
Description	N-Channel MOSFET
Datasheet	TK5A90E-Toshiba.pdf

TK5A90E Product details

Features

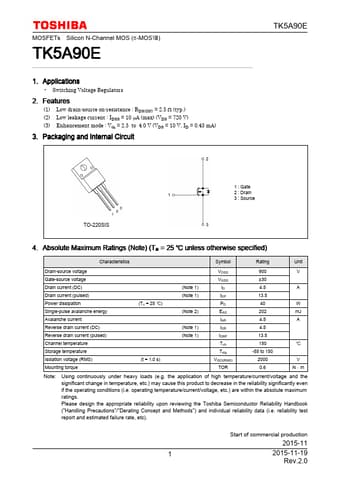

(1) Low drain-source on-resistance : RDS(ON) = 2.5 Ω (typ. ) (2) Low leakage current : IDSS = 10 µA (max) (VDS = 720 V) (3) Enhancement mode : Vth = 2.5 to 4.0 V (VDS = 10 V, ID = 0.45 mA) 3. Packaging and Internal Circuit TK5A90E 1 : Gate 2 : Drain 3 : Source TO-220SIS 4. Absolute Maximum Ratings (Note) (Ta = 25  unless otherwise specified) Characteristics Symbol Rating Unit Drain-source voltage Gate-source voltage Drain current (DC) Drain current (pulsed) Power dissipation Single-puls.
