TK5A65W - N-Channel MOSFET

Toshiba

📥 Download Datasheet

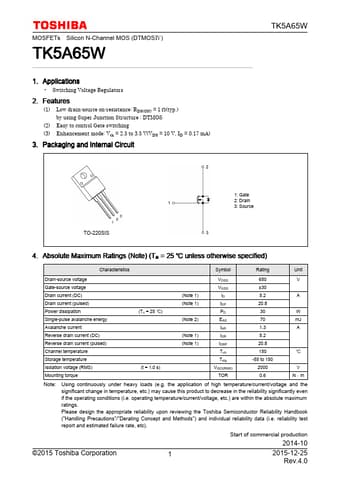

TK5A65W Datasheet Preview — Preview of TK5A65W PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	TK5A65W
Manufacturer	Toshiba ↗
File Size	376.53 KB
Description	N-Channel MOSFET
Datasheet	TK5A65W-Toshiba.pdf

TK5A65W Product details

Features

(1) Low drain-source on-resistance: RDS(ON) = 1 Ω(typ. ) by using Super Junction Structure : DTMOS (2) Easy to control Gate switching (3) Enhancement mode: Vth = 2.5 to 3.5 V(VDS = 10 V, ID = 0.17 mA) 3. Packaging and Internal Circuit TK5A65W 1: Gate 2: Drain 3: Source TO-220SIS 4. Absolute Maximum Ratings (Note) (Ta = 25  unless otherwise specified) Characteristics Symbol Rating Unit Drain-source voltage Gate-source voltage Drain current (DC) Drain current (pulsed) Power dissipation Si.
