TGA2507 Datasheet, Amplifier, TriQuint Semiconductor

TGA2507 Features

• Amplifier

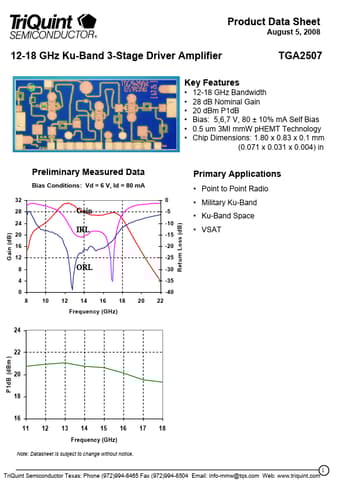

• TGA2507 12-18 GHz Bandwidth 28 dB Nominal Gain 20 dBm P1dB Bias: 5,6,7 V, 80 ± 10% mA Self Bias 0.5 um 3MI mmW pHEMT Techno

PDF File Details

Part number:

TGA2507

Manufacturer:

TriQuint Semiconductor

File Size:

377.03kb

Download:

📄 Datasheet

Description:

12-18 ghz ku-band 3-stage driver amplifier.

TGA2507 Application

• Applications
• Point to Point Radio
• Military Ku-Band
• Ku-Band Space Return Loss (dB) -5 -10 -15 -20 -25 Gain IRL
<
