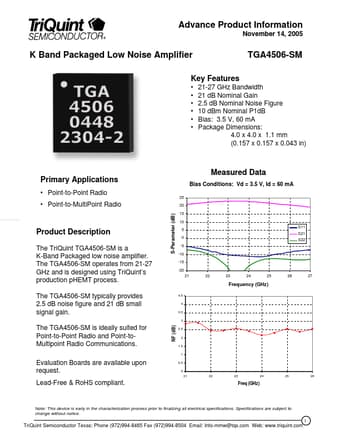

TGA4506-SM K Band Packaged Low Noise Amplifier

The TriQuint TGA4506-SM is a K-Band Packaged low noise amplifier. The TGA4506-SM operates from 21-27 GHz and is designed using TriQuint’s production pHEMT process. The TGA4506-SM typically provides 2.5 dB noise figure and 21 dB small signal gain. The TGA4506-SM is ideally suited for Point-to-Point R.

TGA4506-SM Features

* TGA4506-SM 21-27 GHz Bandwidth 21 dB Nominal Gain 2.5 dB Nominal Noise Figure 10 dBm Nominal P1dB Bias: 3.5 V, 60 mA Package Dimensions: 4.0 x 4.0 x 1.1 mm (0.157 x 0.157 x 0.043 in) Measured Data Primary Applications

* Point-to-
