- Part number
- TGA4507-EPU
- Manufacturer
- TriQuint Semiconductor
- File Size
- 226.67 KB
- Datasheet
- TGA4507-EPU_TriQuintSemiconductor.pdf
- Description
- Ka Band Low Noise Amplifier
TGA4507-EPU Description

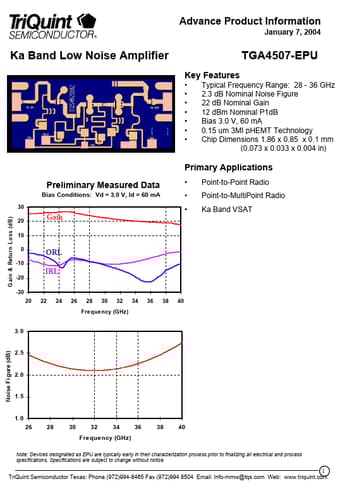

Advance Product Information January 7, 2004 Ka Band Low Noise Amplifier Key .
TGA4507-EPU Features
* TGA4507-EPU
Typical Frequency Range: 28 - 36 GHz 2.3 dB Nominal Noise Figure 22 dB Nominal Gain 12 dBm Nominal P1dB Bias 3.0 V, 60 mA 0.15 um 3MI pHEMT Technology Chip Dimensions 1.86 x 0.85 x 0.1 mm (0.073 x 0.033 x 0.004 in)
P
TGA4507-EPU Applications
* Preliminary Measured Data
Bias Conditions: Vd = 3.0 V, Id = 60 mA
30 Gain & Return Loss (dB) 20 10 0
* Point-to-Point Radio Point-to-MultiPoint Radio Ka Band VSAT
Gain
www. DataSheet4U. com
ORL IRL
-10 -20 -30 20 22 24 26 28 30 32 34 36 38 40 Frequency (GHz)
